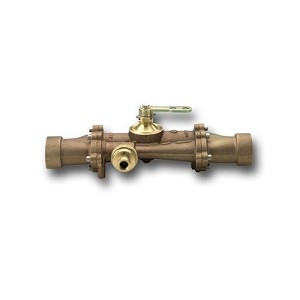

Akron 125 GPM Foam Truck System
125 GPM Foam Truck System

Akron 125 GPM Foam Truck System

Part Number:3126
Retail Price:$5,258.00
Your Savings:$1,566.05(30%)
Your Price: $3,691.95
Akron 125 GPM Foam Truck System

Choose Options

Select Options
Eight (8) quick change handle positions means less installation time. Improved pressure recovery provides greater versatility.

Features:

  • 8 quick change handle positions (easily changed after installation) means less installation time
  • Specify inlet and outlet, 2'', 2 1/2'' NPT or 2'' victaulic
  • Improved pressure recovery provides greater versatility
  • Choose 60, 95, or 125 gpm (230, 360, or 475 lpm)
  • Performs well with both 75 and 100 psi rated nozzles. 75 psi (5 bar) nozzles allow longer hose lays and less reaction force.
1 Tank Includes:

  • Eductor
  • Foam Panel
  • (1) 2” (51 mm) Valve with built in Check Valve
  • (1) Check Valve,
  • (2) 1” (25 mm) Valves
  • (4) 1477 Remotes with Tags
2 Tank Includes :

  • Same as One Tank with (1) Extra 1” (25 mm) Valve
  • (1) Check Valve
  • (1) 1477 Remote and Tag
Easily changed to water line use Each Truck System Includes:

  • Rugged brass by-pass eductor
  • Foam metering dial
  • One 2'' In-line Swing-Out valve with built-in check valve
  • Two 1'' In-line Swing-Out valves
  • One 1'' check valve
  • Four Style 1477 remote controls Note: Each truck system is for a single tank operation. A two tank system requires one (1) additional 1'' Swing-Out Valve, 1'' check valve and 1477 Remote Control.
Note: Each truck system is for a single tank operation. A two tank system requires one (1) additional 1" Swing-Out valve, 1" check valve and 1477 remote control.

Specifications:

  • Style: 3126
  • Weight: 4 lbs (1.8 kg)
  • Type: Truck System
  • Material: Brass
  • Length: 17 5/8"
  • Width: 6 1/4"
  • Height: 5 3/8"
