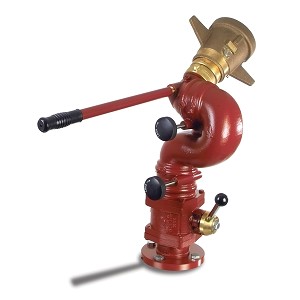

Omega XPV Monitor 4" flange x 2.5" NH outlet, monitor only
Akron Omega XPV Monitor Features:
- Brass construction for corrosion resistance
- Cast-in turning vanes for more efficient flow
- Unique locking mechanism to hold desired position
- Built-in 3" Heavy-Duty Swing-Out valve
- The enhanced design of the fire water monitor provides for less tip weight which translates to lower handle operating force.
- 360° of horizontal movement and 135° of vertical movement
- Elevation 90° above to 45° below horizontal
- Maximum operating pressure of 200 psi
- Maximum flow 1250 gpm
Specifications:
- Weight: 84 lbs (38.2 kg)
- Type: Industrial
- Material: Brass
- Brand: Omega
- Width: 16 1/4'' (413 mm)
- Height: 21 3/16'' less nozzle & handle (538 mm)
- Depth:9 3/4'' (248 mm)
- Inlet: 3'' or 4'' FL (75 or 100 mm)
- Outlet: 2.5'' NH (65 mm)
- Flow (GPM): 1250
- Flow (LPM): 4800
