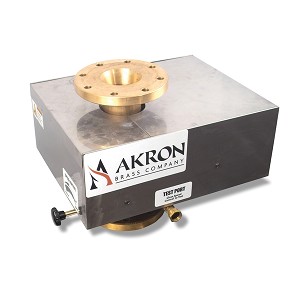

Akron Oscillating Flange for Brass Monitor
Oscillating Flange for Brass Monitor

Akron Oscillating Flange for Brass Monitor

Part Number:3531
Retail Price:$5,875.00
Your Savings:$1,750.05(30%)
Your Price: $4,124.95
Akron Oscillating Flange for Brass Monitor

Choose Options

Select Options
The Style 3531 is capable of flows to 1500 gpm at an oscillation range up to 165° and is compatible with most Akron Brass manual monitors. Its unique maintenance-free polymer bearing design, high quality material construction and superior performance make it the ideal choice for a long-term, low service solution for protecting your hazardous and harsh environments.

Oscillating Flange:

  • Maintenance-free polymer bearing (no ball bearings)
  • Totally water powered (no electrical connections)
  • Heavy-duty low friction loss brass waterway
  • Stainless steel water drive turbine for long life performance
  • Oscillation range: 30°, 60°, 90°, 115°, 140° and 165°
  • Adjustable oscillation speed: 0-40 deg. / second
  • Operating pressure: 50-250 psi (3 17 bar)
  • Maximum flow and pressure: 1250 gpm (4750 lpm) @ 250 psi (17 bar) or 1500 gpm (5700 lpm) @ 180 psi (12.5 bar)
  • Inlet & outlet: 4" 150#ASA flange
  • Integrated test port allows testing of the Oscillating Flange without discharging water from the monitor
Specifications:

  • Weight: 120 lbs (55 kg)
  • Type: Oscillating
  • Material: Brass
  • Width: 21.5in (546.1mm)
  • Height: 15.44in (392.18mm)
  • Depth: 16.75in (425.5mm)
