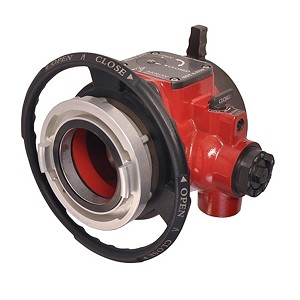

Akron Revolution Straight Inlet Intake Valve
Revolution Straight Inlet Intake Valve

Akron Revolution Straight Inlet Intake Valve

Part Number:7983
Retail Price:$2,221.00
Your Savings:$426.00(19%)
Your Price: $1,795.00
Akron Revolution Straight Inlet Intake Valve

Choose Options

Select Options
Compact Design

Its compact design saves valuable space on your pump panel. The Revolutionary handwheel design hugs tightly to the valve body eliminating possible interference with surrounding discharges and equipment on the pump panel.
The Revolution has all of the standard features you would expect from an intake valve with flows capable up to 2000 gpm (7600 lpm) making it ideal for the most demanding apparatus intake applications.

Features:

  • Straight inlet (7983)
  • Robust, integrated Pyrolite patent-pending handwheel for easy operation
  • Critical pump side waterway components constructed of non-corrosive stainless steel
  • Durable, powder coated interior and exterior finish
  • Optional Storz cap and chain
  • Field adjustable relief valve between 50-250 psi (requires 7/8" wrench to adjust).  Includes 1 ½" NPT female thread so hose can be connected to redirect water to a desirable location
  • Quick turn Bleeder valve operation - vents into relief discharge
  • Built-in Open/Close position indicator on top of valve
  • 2000gpm max flow
  • All parts that stay in contact with water are constructed of stainless steel
  • Field serviceable design
  • NFPA 1901 compliant
Specifications:

  • Style: 7983
  • Weight: 38 lbs (18.1 kg)
  • Material: Aluminum/Stainless Steel
  • Brand: Revolution
  • Width: 14.25'' (362 mm)
  • Height: 12.3" (312 mm)
  • Depth: 11.75'' (without Storz cap) 12.75" (with Storz Cap) (300 mm)
  • Inlet: Storz* - 4", 5" or 6" Full Time Storz Swivel - 4" or 5" Male - 4", 4 1 /2", 5" or 6" Female - 4", 4 1 /2" or 5" (Storz* - 100, 125 or 150 mm Full Time Storz Swivel - 100 or 125 mm Male - 100, 110, 125 or 150 mm Female - 100, 110 or 125 mm )
  • Outlet: 5'' or 6'' (125 or 150 mm)
  • Operating Pressure: 250 psi
