Paratech Rescue Air Cushions
Rescue Air Cushions

Paratech Rescue Air Cushions

Part Number:22-887005K
Your Price: Call Us for Pricing
Paratech Rescue Air Cushions

Choose Options

Select Size

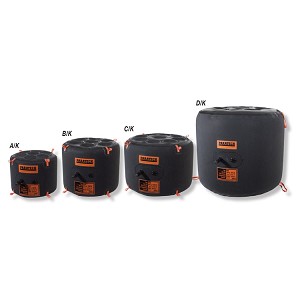

Rescue Air Cushions are available in 4 sizes for maximum versatility and a wide range of applications.

A soft footprint allows placement on soft and uneven terrain, with a contact area exceeding lifting height. Constructed with a highly durable contact area, Rescue Air Cushions have Neoprene coated exterior and interior reinforcement belts.

Portable, hand held controller includes adjustable valves, gauges and pressure reliefs

Rescue Air Cushions can be inflated using a variety of compressed air sources including industrial compressed air, compressed air storage cylinders, air brake systems and portable blowers.

Typical Applications Include:

  • Major vehicle accidents (cars, trucks, buses)
  • Light aircraft recovery
  • Filling voids created in trench collapse
  • Small vehicle turnovers
  • Downed or trapped animals
  • Flotation device
  • Industrial lifting applications
Features:

  • Pressure relief valves on cushions and control valve
  • Interior reinforcing maintains flat lift surfaces for direction of lift force
  • Quick connect couplings with locking ring Positioning handles
  • Each cushion is factory tested at 1.3 times operating pressure
  • Contact area diameter exceeds lifting height
  • Operating pressure of 0-14.5 psi / 1.0 bar aramid reinforced
Advantages:

  • Lifting heights from 17 in to 40 in / 43 cm to 102 cm
  • Greater stability due to the size of the contact area
  • Lighter loads have predictable lift results
  • Full lift capacity over full lifting height
  • Soft footprint allows placement on soft and uneven terrain
  • User repairable for limited damage or punctures
  • Four sizes to choose from
Ease of Operation:

  • Air Cushion inflation can be made from a variety of compressed air sources:
  • Industrial compressed air
  • Compressed air storage cylinders
  • Air brake systems
  • Portable blowers
Kit Contains:
